WS42EVO
Process
New semiautomatic milling machine with four electrospindles for water slots in PVC profile
New semiautomatic milling machine with four electrospindles for water slots in PVC profile
Modelis:
MLA WS42EVO
MLA WS42EVO

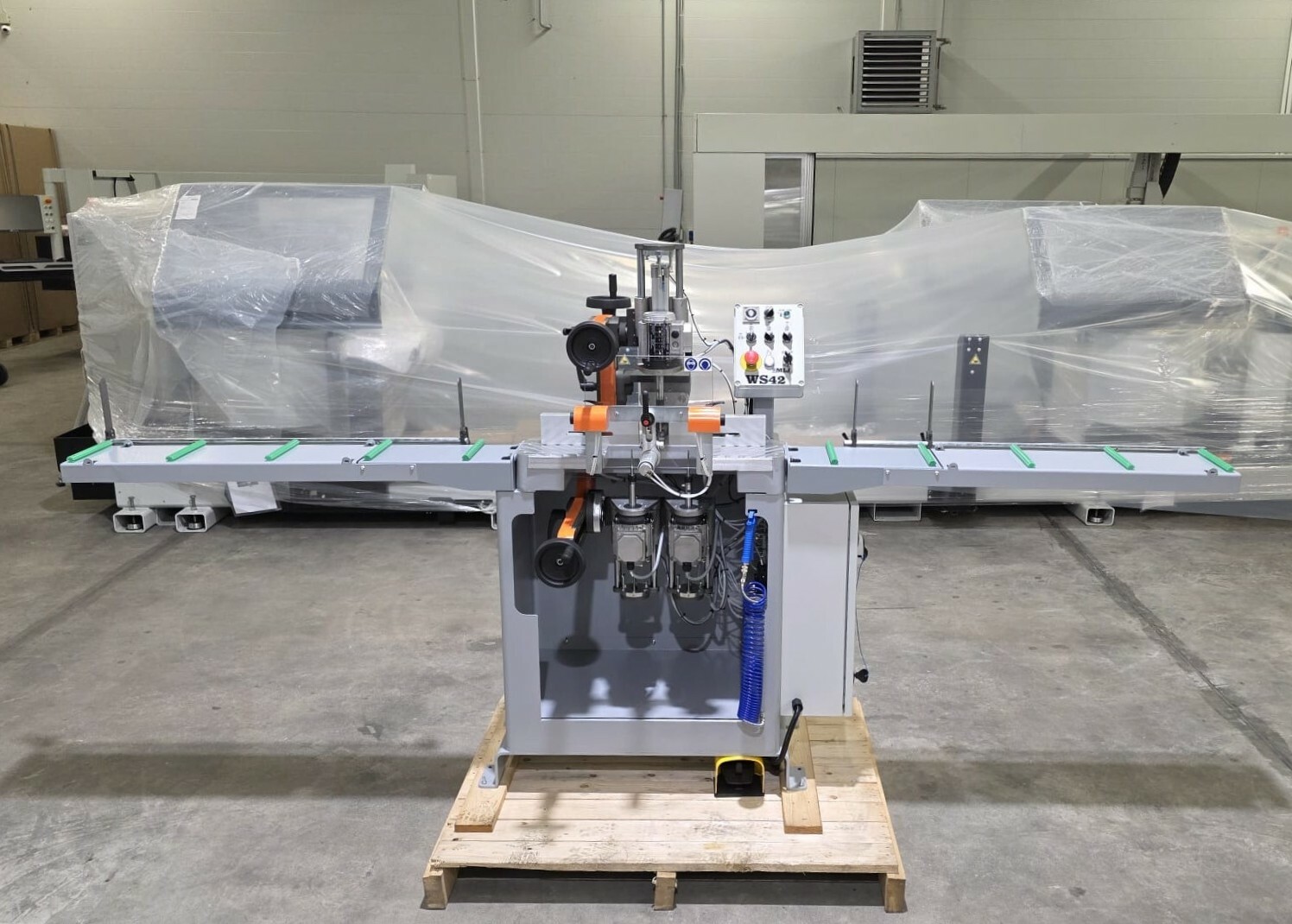

New semiautomatic milling machine with four electrospindles for water slots in PVC profile MLA WS42EVO
Equipped with four cuttersØ5x35/100x8
Equipped with side supports 750 mm for profile with 2+2 stops
4-spindle (inverter-controlled motors)
Each spindle with a millimeter scale
Lower spindle with variable angle tiltable 0 - 60º
Milling stroke is adjustable in the range of 0-50 mm
Drilling stroke: 75 mm for M1 (vertical), 50 mm for M2 (horizontal), 50 mm for M3 and M4 (bottom)
