BLITZ ALVA 500 A 5m

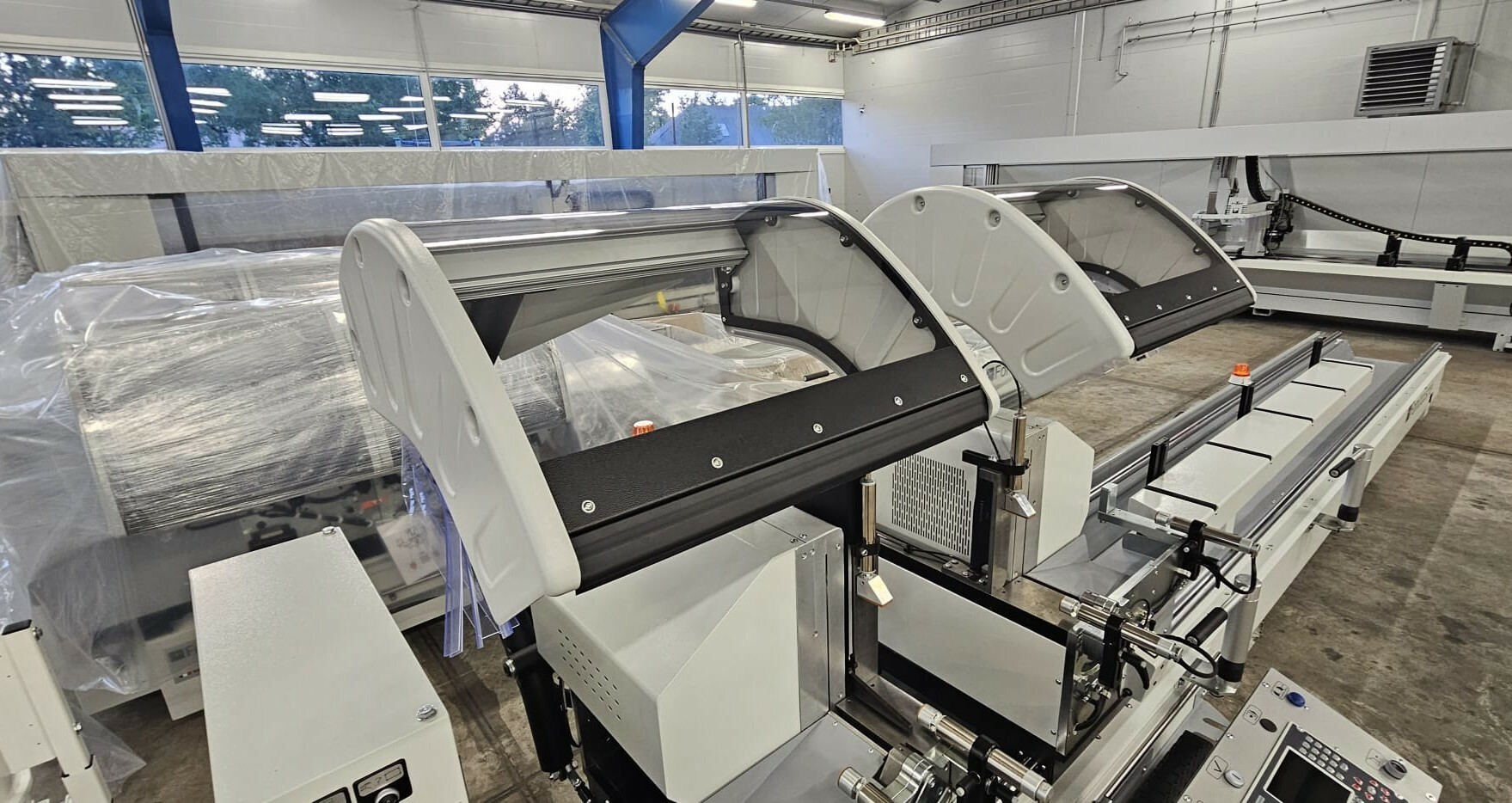

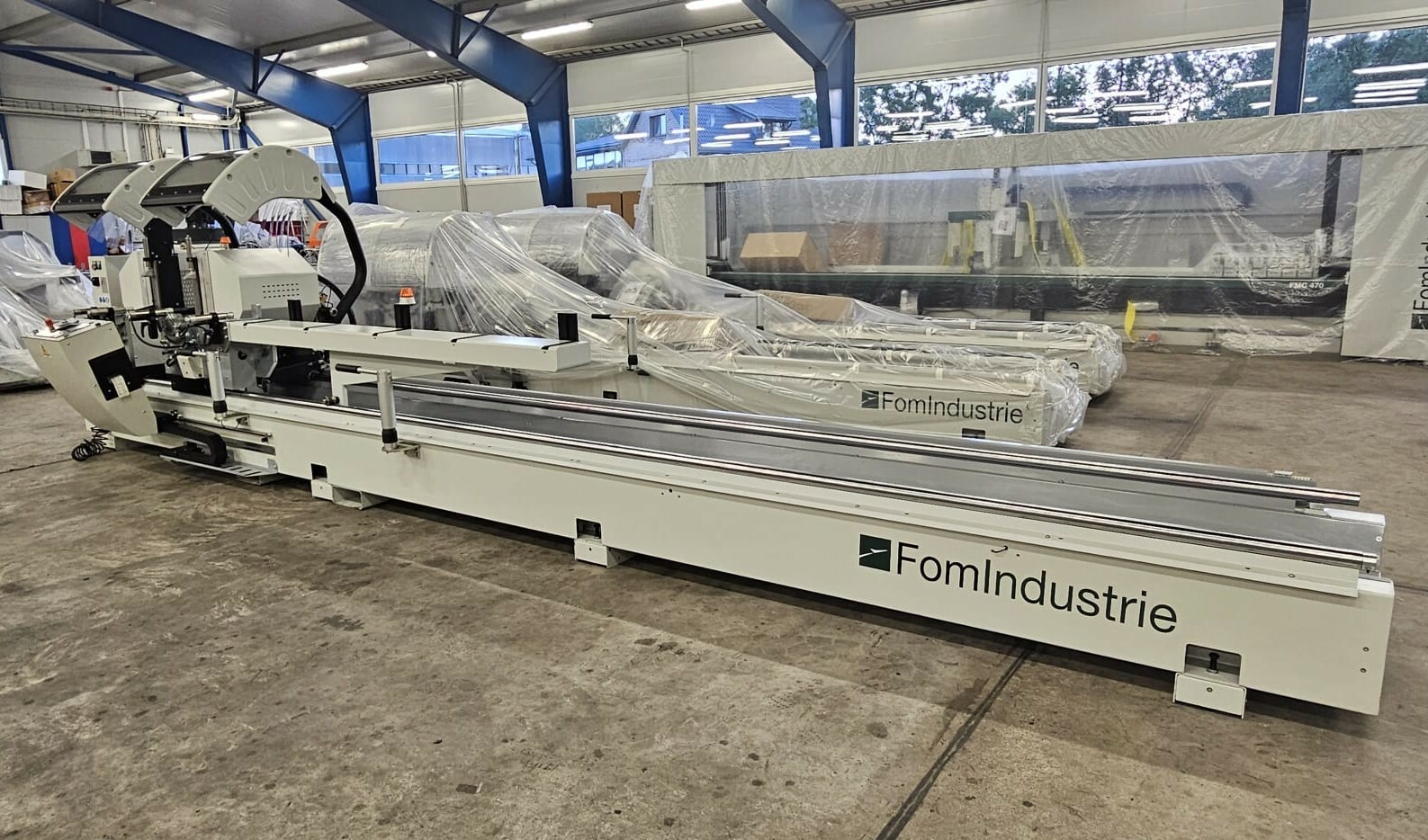

Double-head sawing machine with frontal feed of cutting blades Ø 500 mm
BLITZ ALVA 500 A 5m
XZ-10785 Double-head sawing machine with frontal feed of cutting blades Ø 500 mm FOM INDUSTRIE BLITZ ALVA 500 A 5m
Standard configuration:
- Two Ø 500 mm tungsten carbide saw blades
- Head tilting: 90°- 45°- 22.5° and intermediate angles achieved using stops
- Maximum cut between the two heads: 5 m
- Minimum cutting capacity between the two heads: 305 mm
- Hydro-pneumatic feeding of saw blades

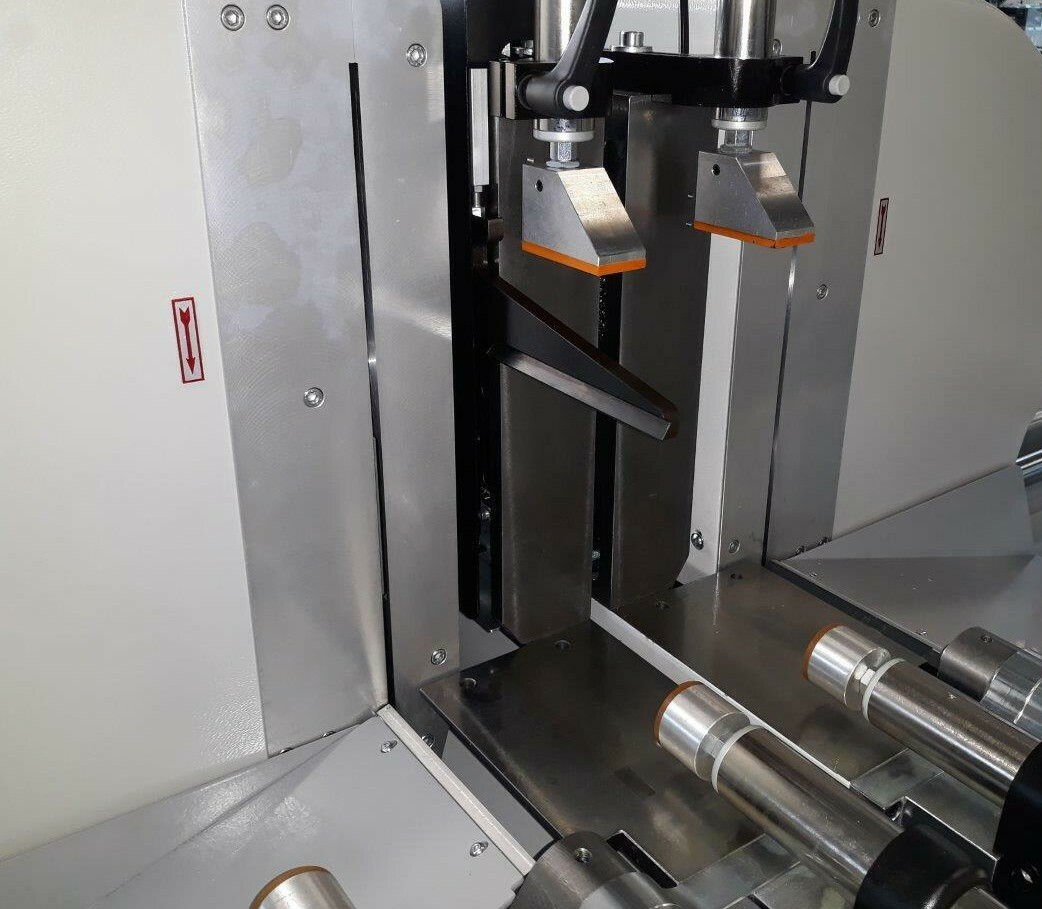

- Two pneumatic vertical vices
- Four pneumatic horizontal vices
- Movable head roller table (2,5 m)
- Profile height measuring device
- Spray mist blade lubrication system

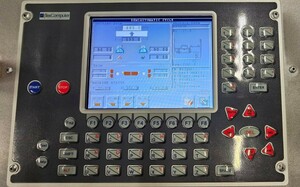

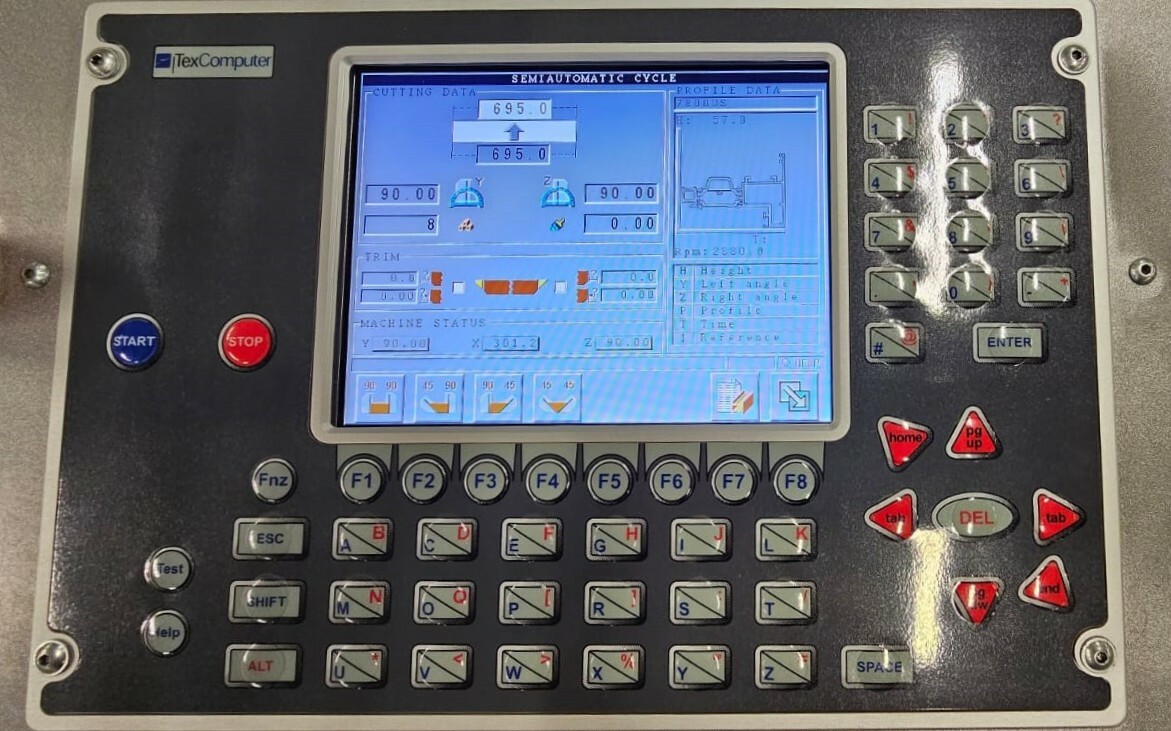

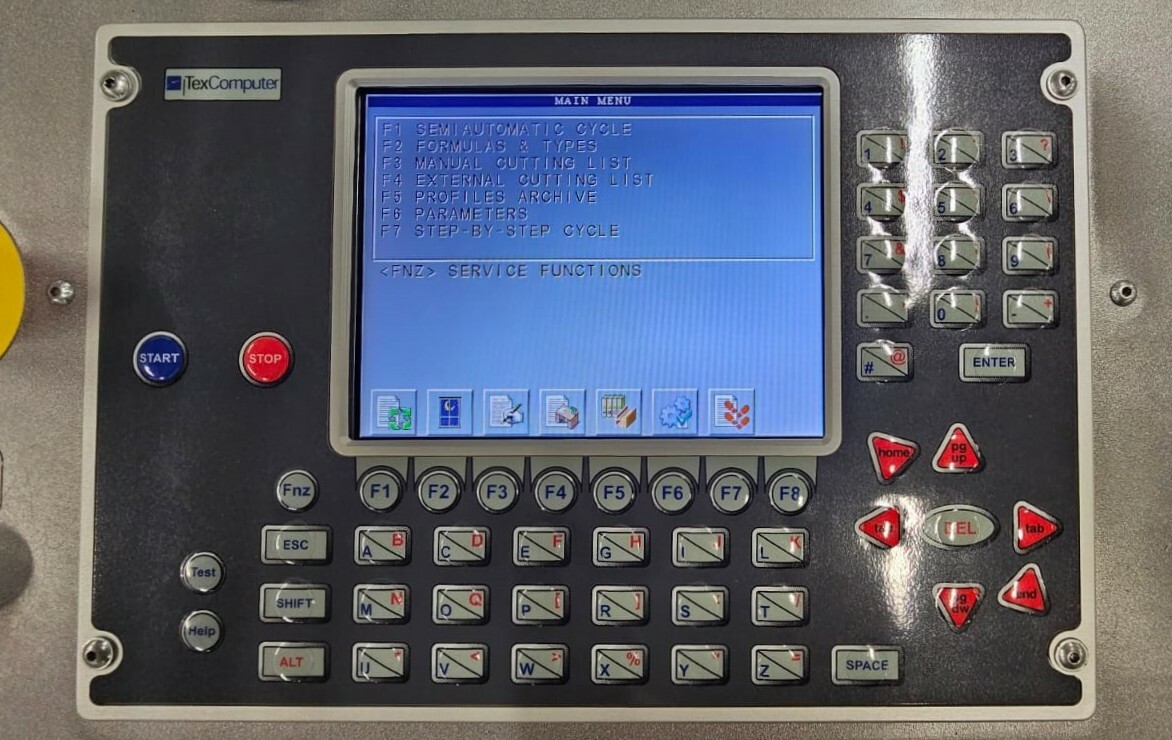

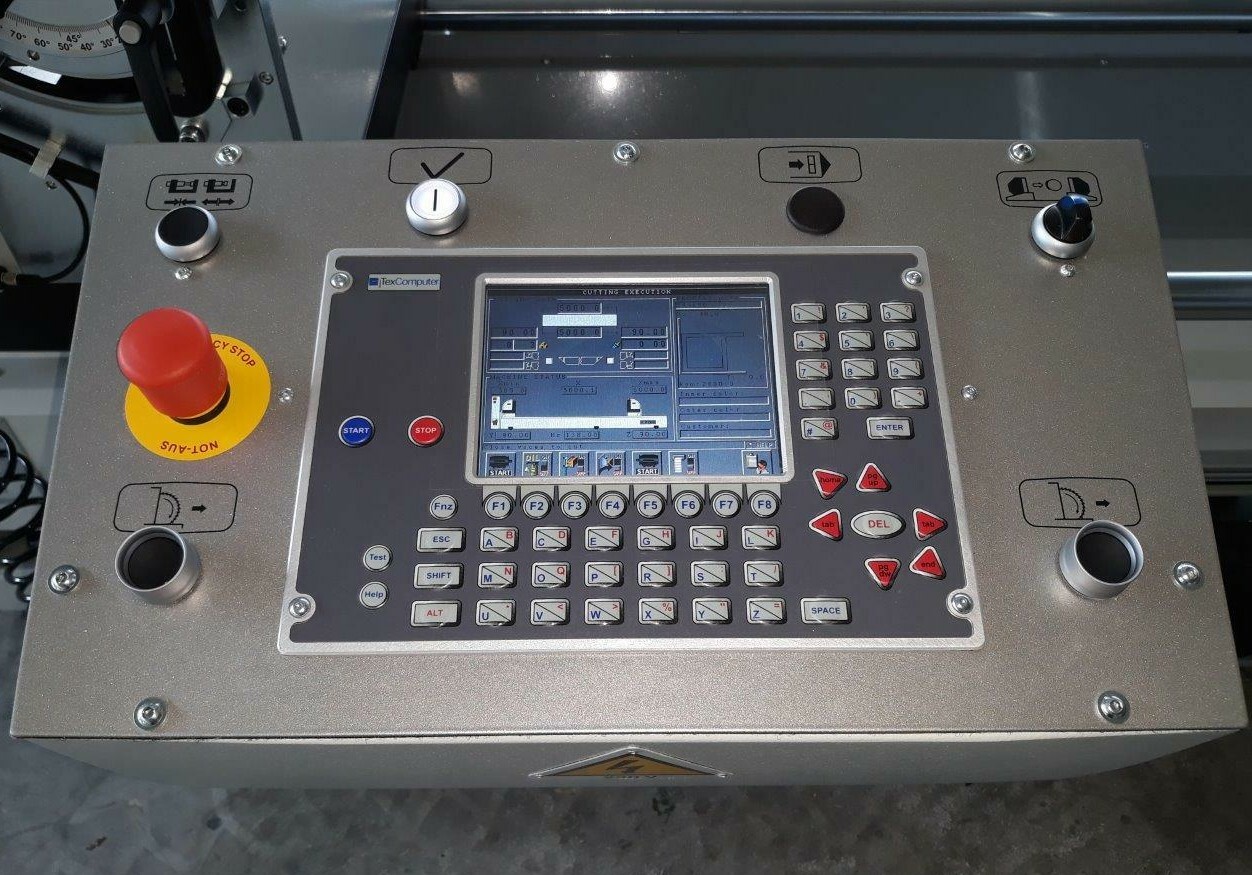

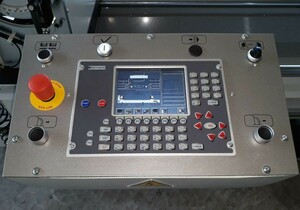

- Control RIGHEL

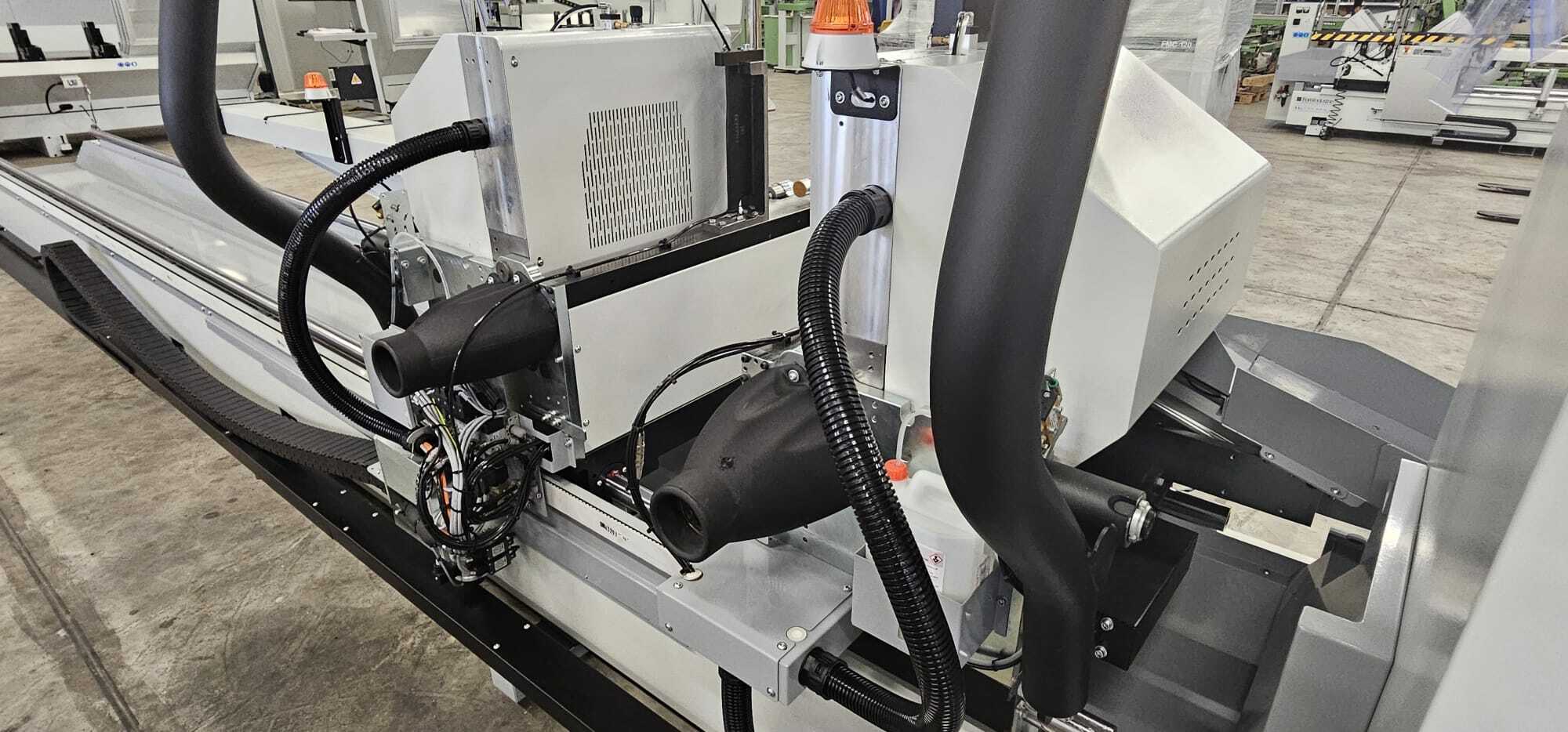

- Set up for the extraction of chips and fumes
- USB port
Optional equipment installed on the machine:

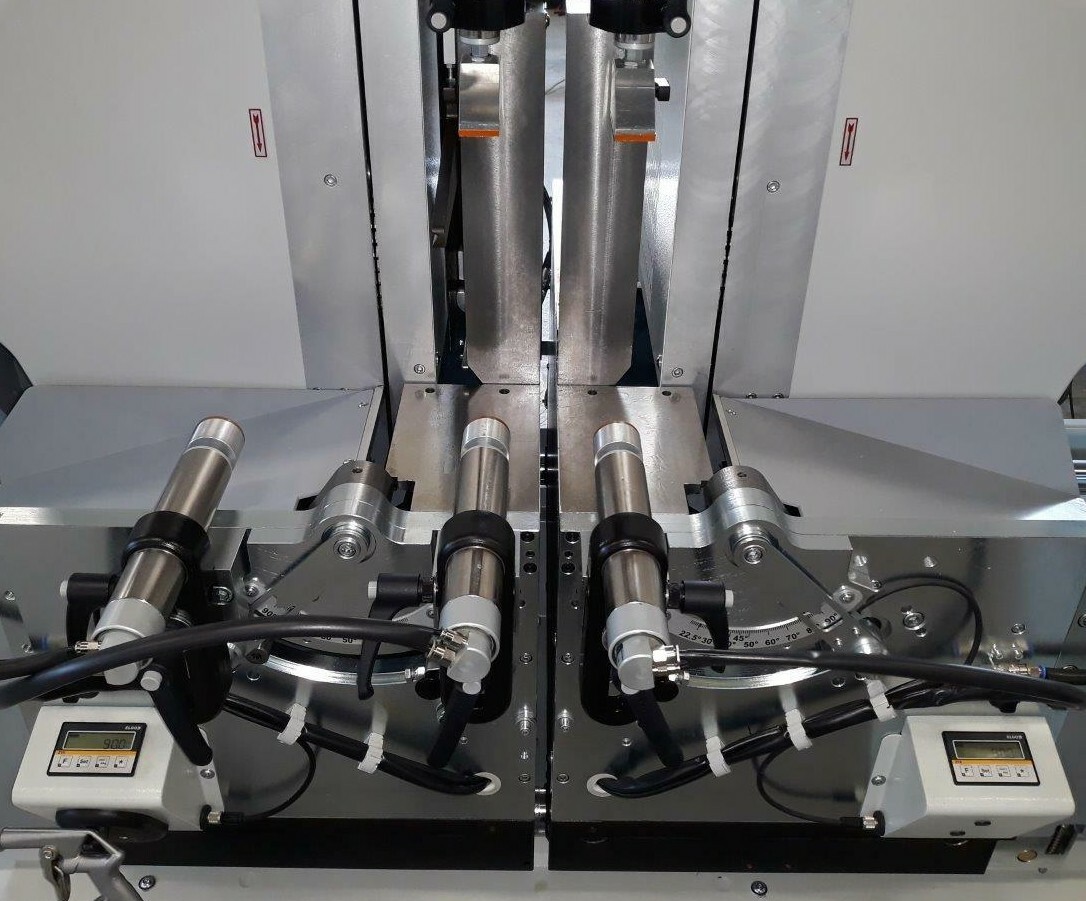

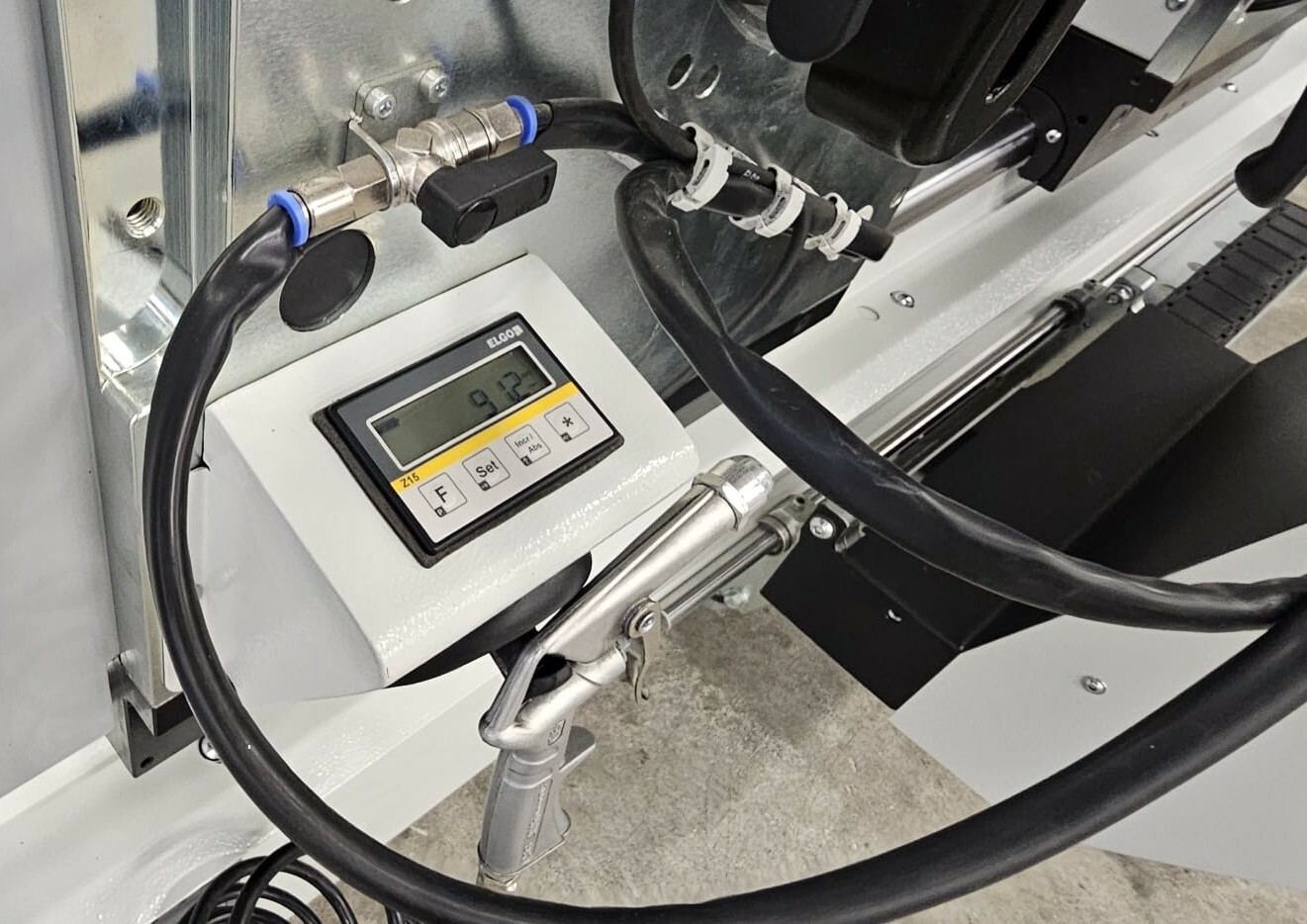

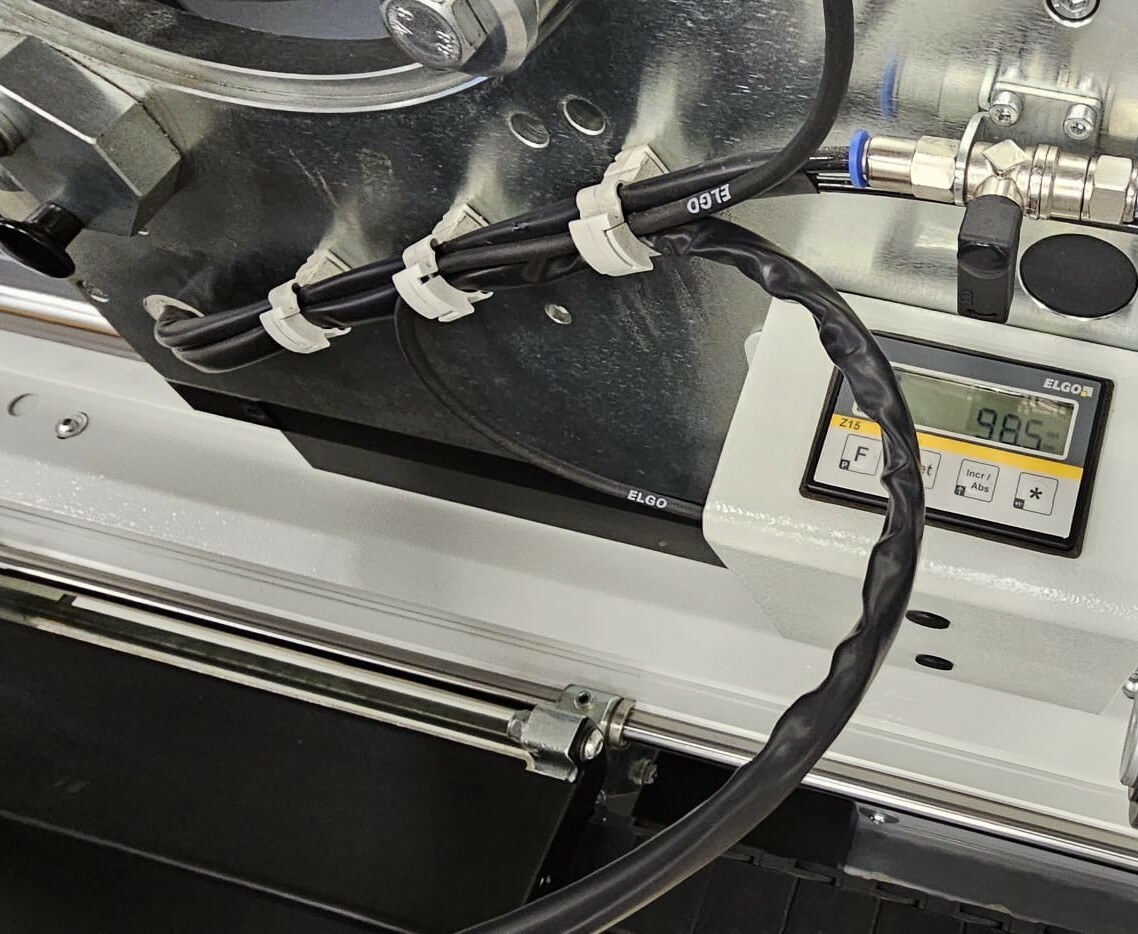

- PR-26863 First and second head angle readout kit

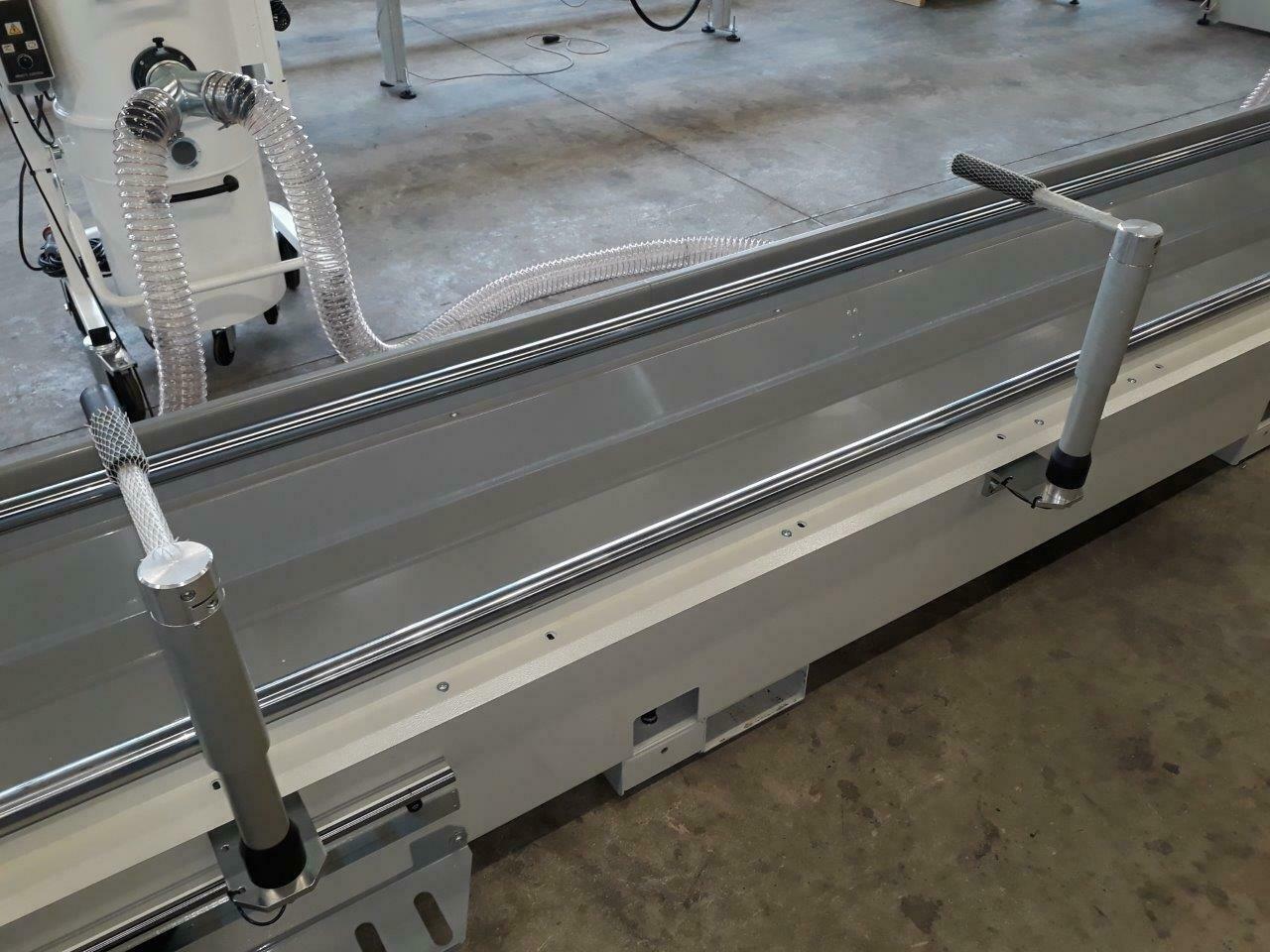

- PR-28698 Two retractable pneumatic intermediate profile support
- ZB711739 Software for highlighting profile sections in DXF format
- PR-28229 Software for step-by-step cutting with two-handed command
- ZB711217 Software for special length cuts (over and under size and super undersize) and 45° trim cut

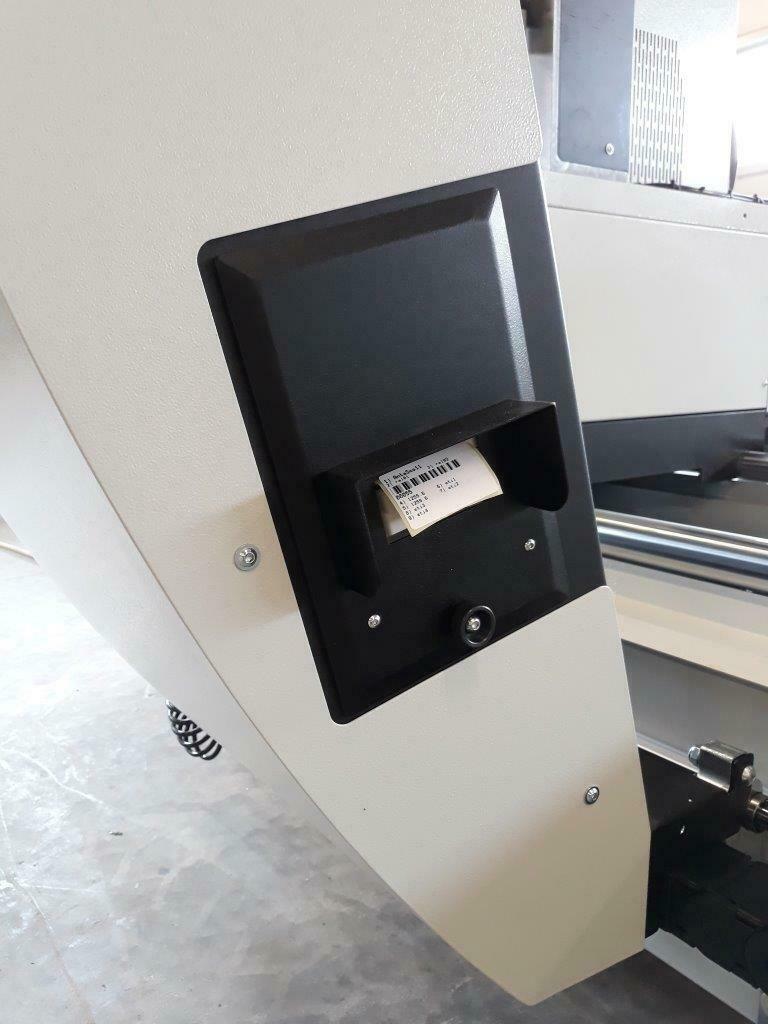

- PR-28674 Label printer
- PR-28553 Ethernet for network connection
- PR-25203 Manual kit for under size cuts

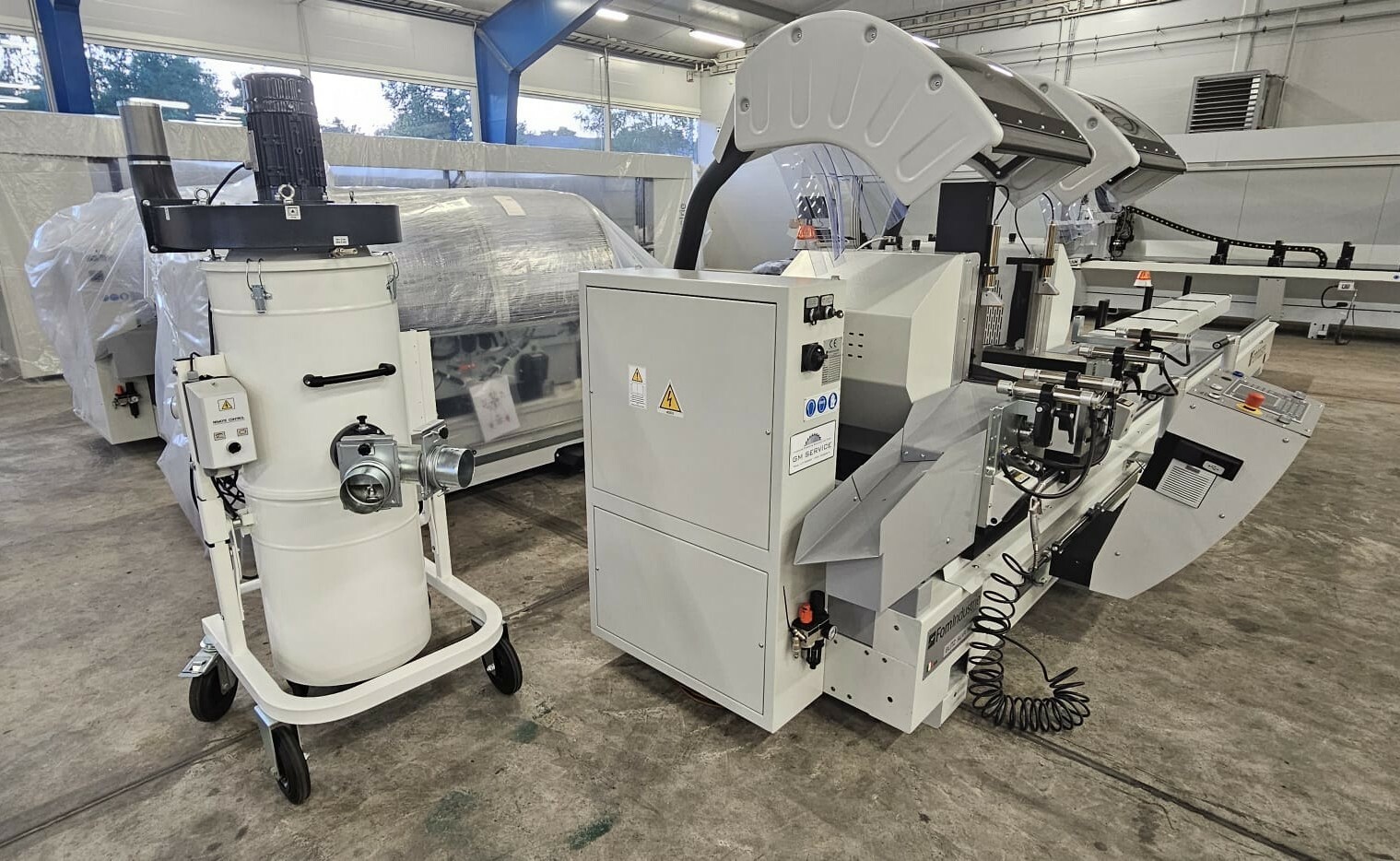

- IV222100 Vacuum cleaner for extraction of chips and fumes
Three machines in stock
